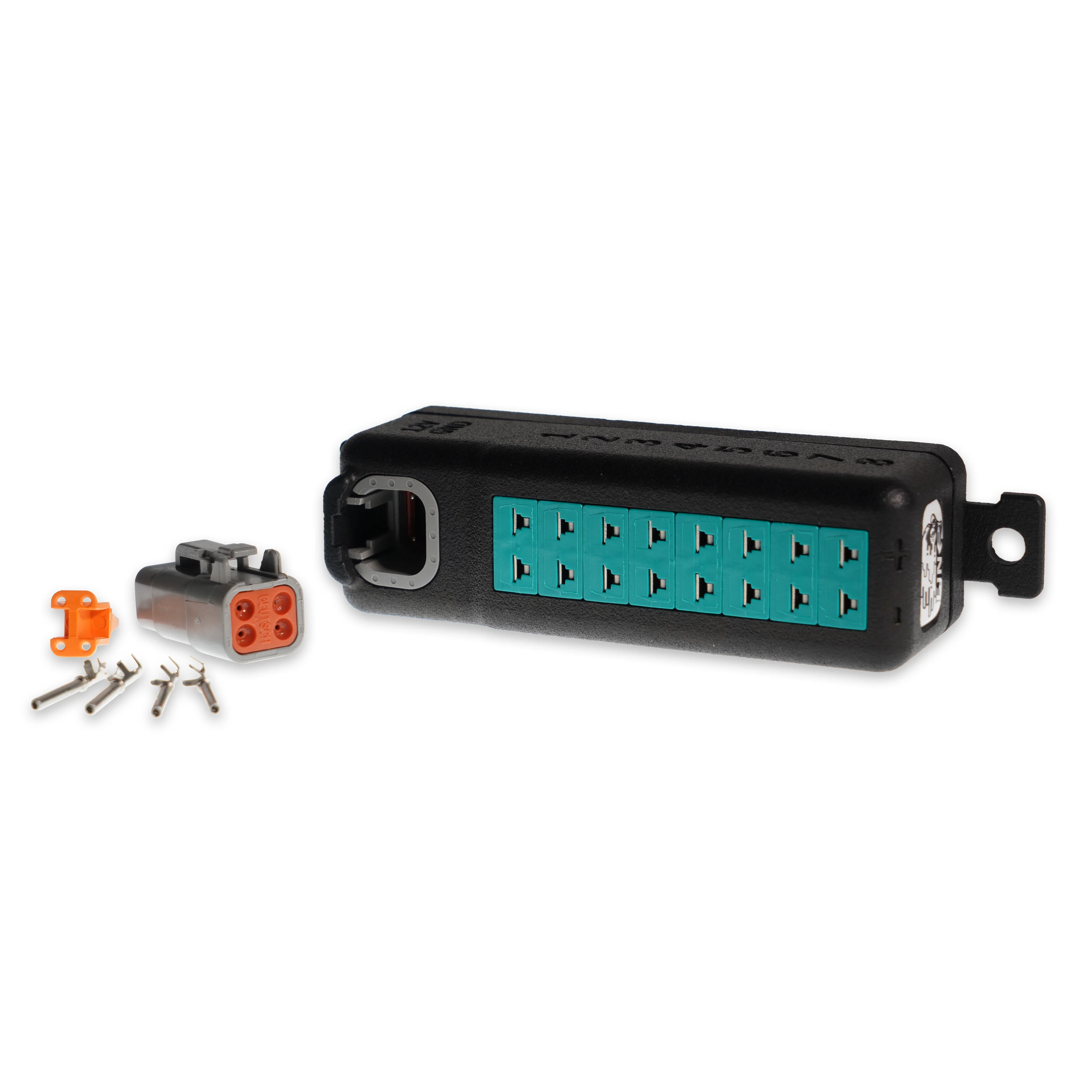

TCC08 8 Channel EGT to CAN Module
_x000D_ Link TCC08 8 Channel EGT to CAN module, powered by CANchecked _x000D_ _x000D_ _x000D_ The TCC08 EGT to CAN module allows you to connect up to eight Type-K thermocouples and send the values ​​via CAN bus and/or monitor them directly on your wireless enabled device. _x000D_ _x000D_ _x000D_ Type-K thermocouples are suitable for various applications such as measuring exhaust gas temperature (EGT), temperatures before/after the intercooler, turbo housings, cylinder head temperatures, water temperature, oil temperature and more. All measurements are cold junction compensated with a measuring range of 0 to 1250°C in 0.25°C resolution (14bit). _x000D_ _x000D_ _x000D_ The TCC08 feature a four-pin DTM connector for CAN & power that is pin compatible with Links standard CAN pinout and CAN cables range. CAN 2.0A/B standard is supported with flexible configuration. _x000D_ _x000D_ _x000D_ Wireless connectivity allows you to configure and update your module via smartphone or PC and query the current temperature and thermocouple status. _x000D_ _x000D_ _x000D_ _x000D_ Features: _x000D_ _x000D_ _x000D_ _x000D_ 8 x cold junction compensated type-K inputs _x000D_ _x000D_ _x000D_ CAN Bus connection to ECU (Pre-Configured for Link ECU) _x000D_ _x000D_ Specifications: DTM 4 CAN Pinout (Supports Links CAN pinout schema and CAN cables range) Pin 1: 12V Pin 2: Ground Pin 3: Can Low Pin 4: Can High Accuracy: maximum 2% deviation Dimension (L x W x H) – 129 x 31.5 x 34.6mm Configuration Options: The module can be configured via wireless: Can Speed: 125kbps, 250kbps, 500kbps, 1Mbps Emulation: Standard, All major aftermarket EGT/Thermocouple to CAN Modules Change of standard Can Bus ID Change Big/Little Endian Set-up and Installation Guide
_x000D_ Link TCC08 8 Channel EGT to CAN module, powered by CANchecked _x000D_ _x000D_ _x000D_ The TCC08 EGT to CAN module allows you to connect up to eight Type-K thermocouples and send the values ​​via CAN bus and/or monitor them directly on your wireless enabled device. _x000D_ _x000D_ _x000D_ Type-K thermocouples are suitable for various applications such as measuring exhaust gas temperature (EGT), temperatures before/after the intercooler, turbo housings, cylinder head temperatures, water temperature, oil temperature and more. All measurements are cold junction compensated with a measuring range of 0 to 1250°C in 0.25°C resolution (14bit). _x000D_ _x000D_ _x000D_ The TCC08 feature a four-pin DTM connector for CAN & power that is pin compatible with Links standard CAN pinout and CAN cables range. CAN 2.0A/B standard is supported with flexible configuration. _x000D_ _x000D_ _x000D_ Wireless connectivity allows you to configure and update your module via smartphone or PC and query the current temperature and thermocouple status. _x000D_ _x000D_ _x000D_ _x000D_ Features: _x000D_ _x000D_ _x000D_ _x000D_ 8 x cold junction compensated type-K inputs _x000D_ _x000D_ _x000D_ CAN Bus connection to ECU (Pre-Configured for Link ECU) _x000D_ _x000D_ Specifications: DTM 4 CAN Pinout (Supports Links CAN pinout schema and CAN cables range) Pin 1: 12V Pin 2: Ground Pin 3: Can Low Pin 4: Can High Accuracy: maximum 2% deviation Dimension (L x W x H) – 129 x 31.5 x 34.6mm Configuration Options: The module can be configured via wireless: Can Speed: 125kbps, 250kbps, 500kbps, 1Mbps Emulation: Standard, All major aftermarket EGT/Thermocouple to CAN Modules Change of standard Can Bus ID Change Big/Little Endian Set-up and Installation Guide
Description
_x000D_ Link TCC08 8 Channel EGT to CAN module, powered by CANchecked _x000D_ _x000D_ _x000D_ The TCC08 EGT to CAN module allows you to connect up to eight Type-K thermocouples and send the values ​​via CAN bus and/or monitor them directly on your wireless enabled device. _x000D_ _x000D_ _x000D_ Type-K thermocouples are suitable for various applications such as measuring exhaust gas temperature (EGT), temperatures before/after the intercooler, turbo housings, cylinder head temperatures, water temperature, oil temperature and more. All measurements are cold junction compensated with a measuring range of 0 to 1250°C in 0.25°C resolution (14bit). _x000D_ _x000D_ _x000D_ The TCC08 feature a four-pin DTM connector for CAN & power that is pin compatible with Links standard CAN pinout and CAN cables range. CAN 2.0A/B standard is supported with flexible configuration. _x000D_ _x000D_ _x000D_ Wireless connectivity allows you to configure and update your module via smartphone or PC and query the current temperature and thermocouple status. _x000D_ _x000D_ _x000D_ _x000D_ Features: _x000D_ _x000D_ _x000D_ _x000D_ 8 x cold junction compensated type-K inputs _x000D_ _x000D_ _x000D_ CAN Bus connection to ECU (Pre-Configured for Link ECU) _x000D_ _x000D_ Specifications: DTM 4 CAN Pinout (Supports Links CAN pinout schema and CAN cables range) Pin 1: 12V Pin 2: Ground Pin 3: Can Low Pin 4: Can High Accuracy: maximum 2% deviation Dimension (L x W x H) – 129 x 31.5 x 34.6mm Configuration Options: The module can be configured via wireless: Can Speed: 125kbps, 250kbps, 500kbps, 1Mbps Emulation: Standard, All major aftermarket EGT/Thermocouple to CAN Modules Change of standard Can Bus ID Change Big/Little Endian Set-up and Installation Guide
