Hall Effect Sensor Kit

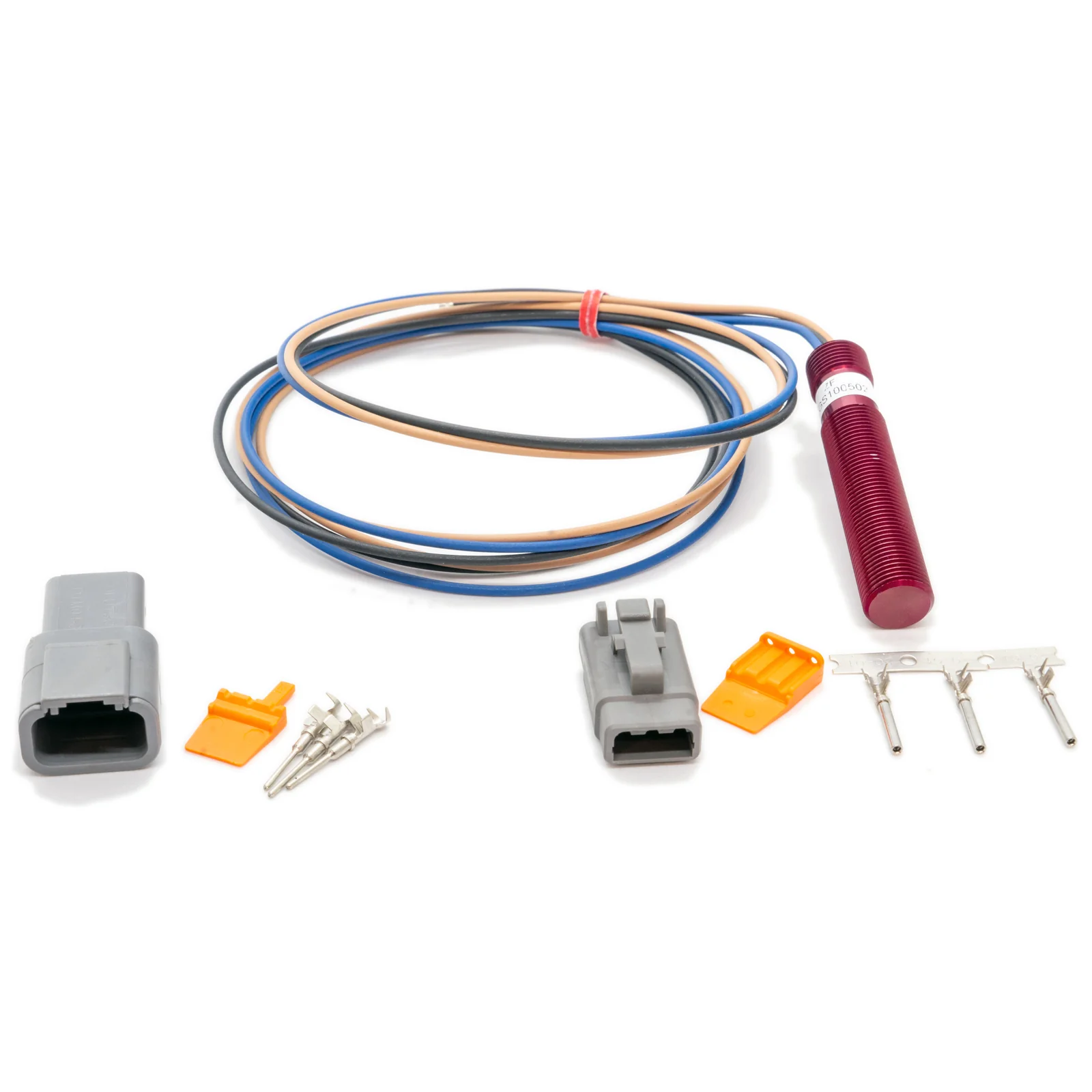

Hall effect sensor designed for use in applications where ferrous edge detection/near zero speed sensing is needed. They provide a sinking current output. Typical automotive applications include: Crank & Cam Signals Speedometers Anti-lock braking systems Box Contents 1 x Hall Effect Sensor 1 x DTM3 Connector Kit Set (Matching set, Male & Female connectors, pins & wedges) From near zero speed up to 15 kHz sensing capability 10 bit dynamic threshold direction offers: Automatically adjusting magnetic range, Self-compensating to target geometry Compatible with unregulated power supply RoHS compliant IP67 Typical air gap of 1.5 mm Thread = M12x1.0 _x000D_ Lead Length = 1m (20 AWG) _x000D_ Pin Out: _x000D_ Brown = Supply VCC _x000D_ Blue = Ground _x000D_ Black = Output V _x000D_ Voltage = 5v - 24v _x000D_ Max Current Draw = 6 mA _x000D_ Maximum Speed Detection = 15 kHz _x000D_ Maximum Installation Torque Limit = 5.65 Nm (50 in lb) on thread _x000D_ Recommended External Pull-Up Resistor: _x000D_ 5 Volts DC = 1k Ohms _x000D_ 9 Volts DC = 1.8k Ohms _x000D_ 12 Volts DC = 2.4k Ohms _x000D_ 15 Volts DC = 3k Ohms _x000D_ 24 Volts DC = 3k Ohms _x000D_ Operating Supply Voltage = 5 to 24 VDC _x000D_ Maximum Input Voltage = 30 VDC _x000D_ Maximum Reverse Voltage = 24 VDC _x000D_ Supply Current = 3 mA typ., 6 mA max _x000D_ Output Sink Current = 20 mA max _x000D_ Housing Material = Anodized Aluminum _x000D_ Operating Temperature = -40 °C to 125 ͼC _x000D_ Ingress Protection = IP67 _x000D_ Sensor Length = 65.5mm (2.58 inches) _x000D_ _x000D_ For best results, we recommend targets made from low carbon cold rolled _x000D_ steel. Other factors that influence sensor performance include gear tooth _x000D_ height and width, space between the teeth, shape of the teeth and thickness _x000D_ of the target. As a general guideline, consider a target with minimum _x000D_ parameters as shown below. Note that smaller dimensions may work, but _x000D_ testing for the application is required. _x000D_ _x000D_ Tooth Height - 5.0 mm (.200") _x000D_ Tooth Width - 2.5 mm (.100") _x000D_ Distance between _x000D_ Teeth - 10 mm (.400") _x000D_ Target Thickness - 6.35 mm (.250")
Hall effect sensor designed for use in applications where ferrous edge detection/near zero speed sensing is needed. They provide a sinking current output. Typical automotive applications include: Crank & Cam Signals Speedometers Anti-lock braking systems Box Contents 1 x Hall Effect Sensor 1 x DTM3 Connector Kit Set (Matching set, Male & Female connectors, pins & wedges) From near zero speed up to 15 kHz sensing capability 10 bit dynamic threshold direction offers: Automatically adjusting magnetic range, Self-compensating to target geometry Compatible with unregulated power supply RoHS compliant IP67 Typical air gap of 1.5 mm Thread = M12x1.0 _x000D_ Lead Length = 1m (20 AWG) _x000D_ Pin Out: _x000D_ Brown = Supply VCC _x000D_ Blue = Ground _x000D_ Black = Output V _x000D_ Voltage = 5v - 24v _x000D_ Max Current Draw = 6 mA _x000D_ Maximum Speed Detection = 15 kHz _x000D_ Maximum Installation Torque Limit = 5.65 Nm (50 in lb) on thread _x000D_ Recommended External Pull-Up Resistor: _x000D_ 5 Volts DC = 1k Ohms _x000D_ 9 Volts DC = 1.8k Ohms _x000D_ 12 Volts DC = 2.4k Ohms _x000D_ 15 Volts DC = 3k Ohms _x000D_ 24 Volts DC = 3k Ohms _x000D_ Operating Supply Voltage = 5 to 24 VDC _x000D_ Maximum Input Voltage = 30 VDC _x000D_ Maximum Reverse Voltage = 24 VDC _x000D_ Supply Current = 3 mA typ., 6 mA max _x000D_ Output Sink Current = 20 mA max _x000D_ Housing Material = Anodized Aluminum _x000D_ Operating Temperature = -40 °C to 125 ͼC _x000D_ Ingress Protection = IP67 _x000D_ Sensor Length = 65.5mm (2.58 inches) _x000D_ _x000D_ For best results, we recommend targets made from low carbon cold rolled _x000D_ steel. Other factors that influence sensor performance include gear tooth _x000D_ height and width, space between the teeth, shape of the teeth and thickness _x000D_ of the target. As a general guideline, consider a target with minimum _x000D_ parameters as shown below. Note that smaller dimensions may work, but _x000D_ testing for the application is required. _x000D_ _x000D_ Tooth Height - 5.0 mm (.200") _x000D_ Tooth Width - 2.5 mm (.100") _x000D_ Distance between _x000D_ Teeth - 10 mm (.400") _x000D_ Target Thickness - 6.35 mm (.250")
Description
Hall effect sensor designed for use in applications where ferrous edge detection/near zero speed sensing is needed. They provide a sinking current output. Typical automotive applications include: Crank & Cam Signals Speedometers Anti-lock braking systems Box Contents 1 x Hall Effect Sensor 1 x DTM3 Connector Kit Set (Matching set, Male & Female connectors, pins & wedges) From near zero speed up to 15 kHz sensing capability 10 bit dynamic threshold direction offers: Automatically adjusting magnetic range, Self-compensating to target geometry Compatible with unregulated power supply RoHS compliant IP67 Typical air gap of 1.5 mm Thread = M12x1.0 _x000D_ Lead Length = 1m (20 AWG) _x000D_ Pin Out: _x000D_ Brown = Supply VCC _x000D_ Blue = Ground _x000D_ Black = Output V _x000D_ Voltage = 5v - 24v _x000D_ Max Current Draw = 6 mA _x000D_ Maximum Speed Detection = 15 kHz _x000D_ Maximum Installation Torque Limit = 5.65 Nm (50 in lb) on thread _x000D_ Recommended External Pull-Up Resistor: _x000D_ 5 Volts DC = 1k Ohms _x000D_ 9 Volts DC = 1.8k Ohms _x000D_ 12 Volts DC = 2.4k Ohms _x000D_ 15 Volts DC = 3k Ohms _x000D_ 24 Volts DC = 3k Ohms _x000D_ Operating Supply Voltage = 5 to 24 VDC _x000D_ Maximum Input Voltage = 30 VDC _x000D_ Maximum Reverse Voltage = 24 VDC _x000D_ Supply Current = 3 mA typ., 6 mA max _x000D_ Output Sink Current = 20 mA max _x000D_ Housing Material = Anodized Aluminum _x000D_ Operating Temperature = -40 °C to 125 ͼC _x000D_ Ingress Protection = IP67 _x000D_ Sensor Length = 65.5mm (2.58 inches) _x000D_ _x000D_ For best results, we recommend targets made from low carbon cold rolled _x000D_ steel. Other factors that influence sensor performance include gear tooth _x000D_ height and width, space between the teeth, shape of the teeth and thickness _x000D_ of the target. As a general guideline, consider a target with minimum _x000D_ parameters as shown below. Note that smaller dimensions may work, but _x000D_ testing for the application is required. _x000D_ _x000D_ Tooth Height - 5.0 mm (.200") _x000D_ Tooth Width - 2.5 mm (.100") _x000D_ Distance between _x000D_ Teeth - 10 mm (.400") _x000D_ Target Thickness - 6.35 mm (.250")
