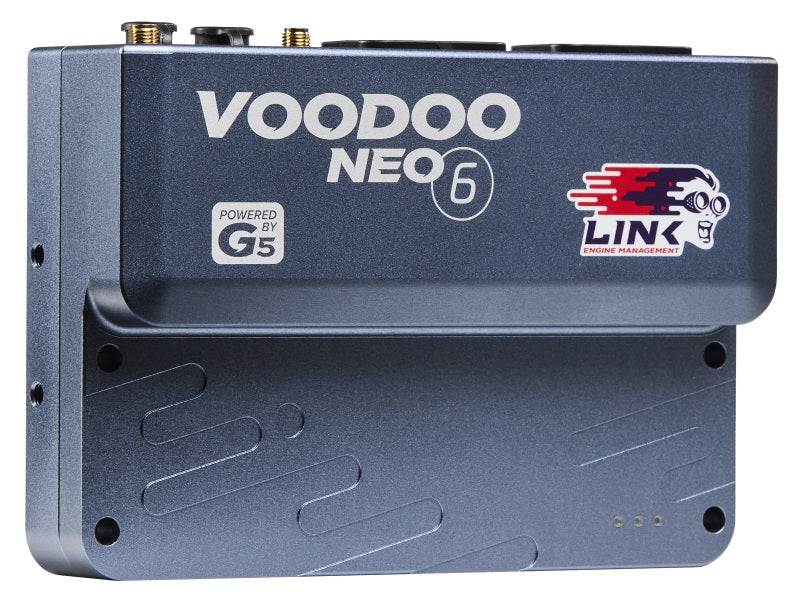

G5 Voodoo Neo 6 The next generation of engine management for many more engines. The G5 Voodoo Neo 6 can run: 8 cylinders port or direct injection and direct spark, or 6 cylinders with direct/port staged injection, and direct spark The G5 Voodoo processing units are the perfect choice for professional level motorsport. For more information please see the Features and Specifications tab or view our Product Introduction page here. The G5 Voodoo Neo 6 works on a variety of vehicles, please contact a LinkECU Reseller or Technical Support for advice regarding your specific project. In the box: G5 Voodoo Neo 6 ECU USB-C Connection Cable WiFi Antenna 4m GPS Antenna (Magnetic or Adhesive Mount) USB-C and SMA Dust Covers QuickStart Guide (A5) Installer I/O table (A3) Link stickers New comms module: Up to 10x faster log file download speeds, from minutes to seconds, and enhanced WiFi and GPS Built in ethernet 1GB onboard logging memory 1 onboard wideband CNC case, sealed enclosure 68 pins total (Link A and B 34 pin superseal connectors) K-line support New WEIPU CAN connector, which supplies power for the CAN-bus. Highly customisable IO, using 2 types of multi purpose pins: ADIO pins and Injector/Digital-Input pins. These pins can act as inputs or outputs. Can now power up via the USB cable, making firmware updates and setting up the initial tune a breeze at your PC. Runs on the same highly acclaimed PC Link software as G4X, meaning you don’t need to learn a new software package. You can open both G4X and G5 log and map files in the same software (G4X Map can also be loaded into a G5 Voodoo Pro) More mounting options than ever, with through holes and threaded mount holes on the side and underneath. All NEOs are direct injection capable, including staged port-DI on NEO 4 and 6. Requires “A” & “B” connector kits (not supplied). Click here(more...) Inputs/Outputs _x000D_ _x000D_ Control up to 8 cylinders with port or direct injection and direct spark, or 6 cylinders with direct/port staged injection, t hanks to: _x000D_ _x000D_ 12 injector pins _x000D_ 8 ignition pins _x000D_ 6 aux. output pins _x000D_ (4 injector pins are shared with 4 DI Pins. You can only use each pin for either Injection or DI, not both at the same time.) _x000D_ 6 ADIO pins _x000D_ _x000D_ _x000D_ Highly customisable IO, using 2 types of multi purpose pins: ADIO pins and Injector/Digital-Input pins. These pins can act as inputs or outputs. _x000D_ ADIO are a unique pin type. ADIO can act as an Aux Output (switched or PWM), as an Analogue Input, or as a Digital Input, but cannot read PWM/frequency. _x000D_ Neo 6 has Inj/DI pins which are used as either an injector pin, Aux or a Digital Input pin. They can read PWM/frequency. _x000D_ Any unused injector/ignition pins can be used as an auxiliary pin. _x000D_ All ignition and auxiliary pins are back feed protected. _x000D_ 3 analog inputs _x000D_ 10 digital inputs _x000D_ 4 temperature inputs _x000D_ 2 knock inputs _x000D_ 2 trigger inputs _x000D_ 1 x wideband(more...)
