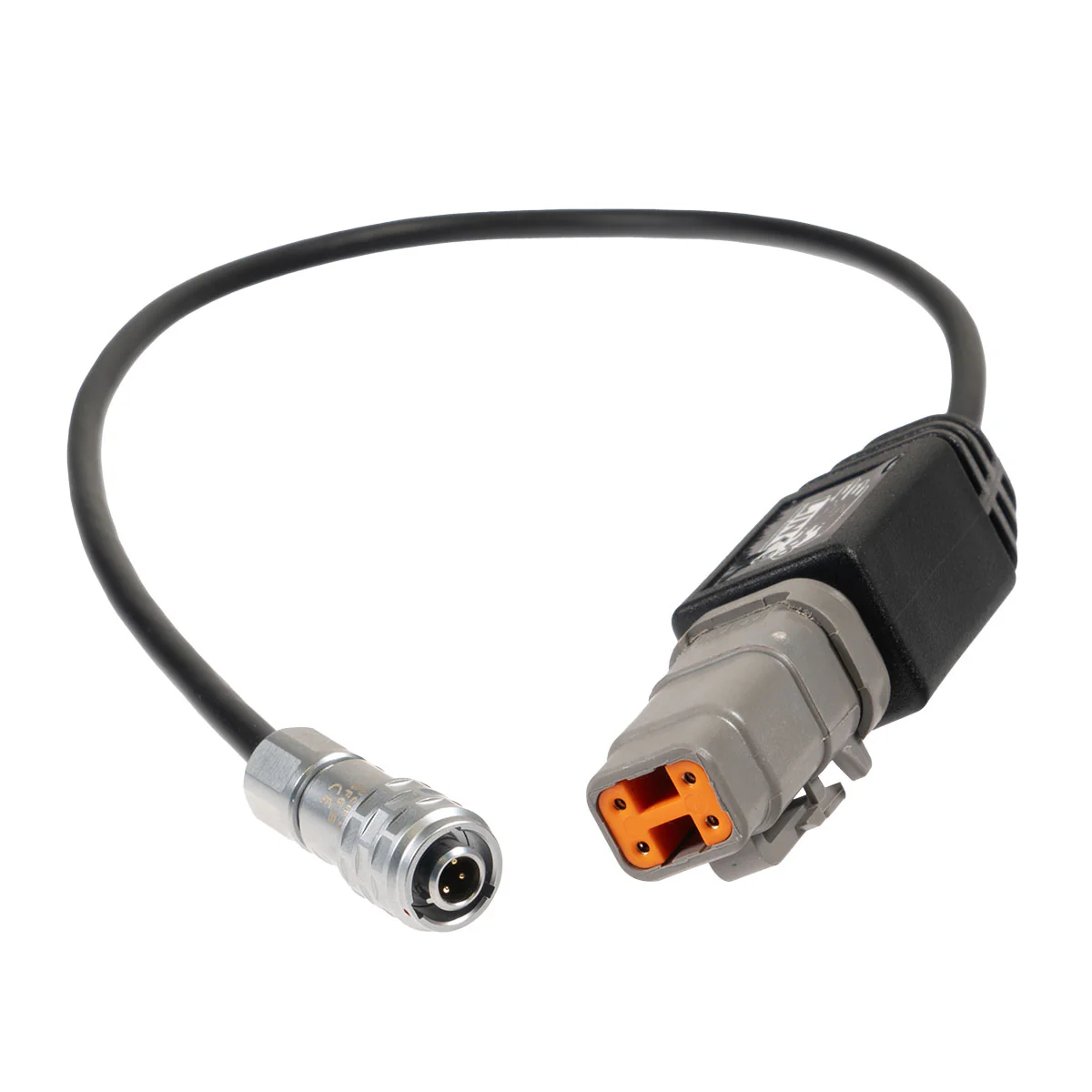

G5 CAN Connection Cable
300mm CAN Cable. Required to add CAN 1 communication to G5 Voodoo Neo ECU's which have CAN accessible via the 4-Pin round Weipu CAN connector on the front of the ECU. Compatible ECU's: G5 Voodoo Neo (CAN1) Specs DTM4 Male to WEiPU SF610B/P4. CAN Loom Length 300mm. Power for CAN is supplied via this cable from the ECU. DTM4 Pin Out Pin 4: CAN H Pin 3: CAN L Pin 2: Ground Pin 1: 12V
300mm CAN Cable. Required to add CAN 1 communication to G5 Voodoo Neo ECU's which have CAN accessible via the 4-Pin round Weipu CAN connector on the front of the ECU. Compatible ECU's: G5 Voodoo Neo (CAN1) Specs DTM4 Male to WEiPU SF610B/P4. CAN Loom Length 300mm. Power for CAN is supplied via this cable from the ECU. DTM4 Pin Out Pin 4: CAN H Pin 3: CAN L Pin 2: Ground Pin 1: 12V
Description
300mm CAN Cable. Required to add CAN 1 communication to G5 Voodoo Neo ECU's which have CAN accessible via the 4-Pin round Weipu CAN connector on the front of the ECU. Compatible ECU's: G5 Voodoo Neo (CAN1) Specs DTM4 Male to WEiPU SF610B/P4. CAN Loom Length 300mm. Power for CAN is supplied via this cable from the ECU. DTM4 Pin Out Pin 4: CAN H Pin 3: CAN L Pin 2: Ground Pin 1: 12V
