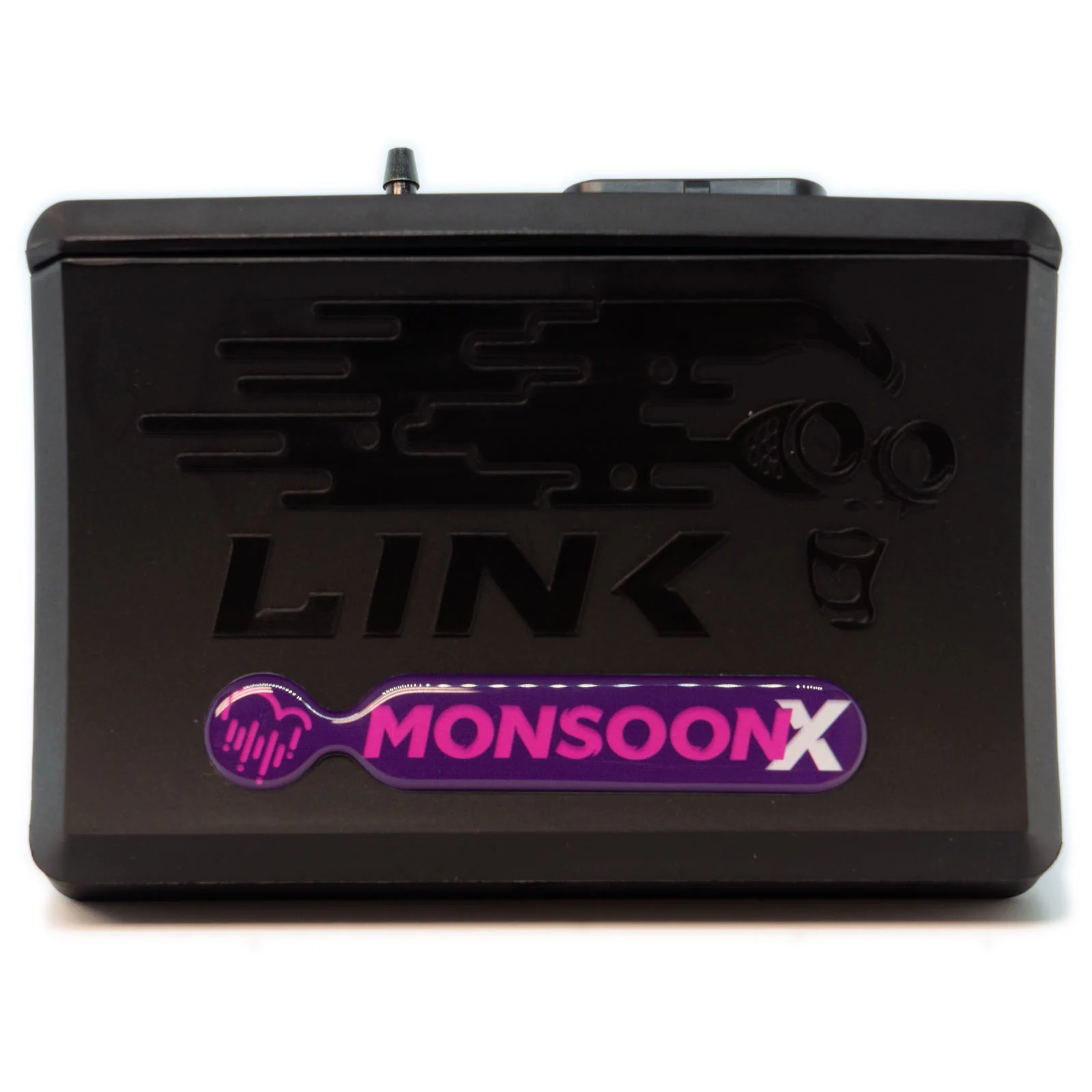

_x000D_ MonsoonX _x000D_ _x000D_ _x000D_ _x000D_ More features, more powerful. _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ The MonsoonX will control up to 2 rotors or 4 cylinders with sequential injection and direct spark. Or, it can be used for up to eight cylinders using batch fire. _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ This makes it ideal for naturally aspirated or turbocharged engines that just need a retune and one or two extra features, so you don’t need to jump up to one of our higher-level ECUs. _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ The MonsoonX processing unit has been upgraded to provide 512 megabytes of data logging, meaning you can log much more data at a faster sample rate. Control loops are also more precise compared to its G4+ predecessor, along with advancements such as single precision floating point format fuel tables, better resolution within ignition timing and faster communications. These upgrades make the G4X Monsoon a true powerhouse in a small shell. _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ The G4X logging features 512 megabytes at 32bit using up to 250 channels, each limited to up to 1kHz per channel (by the Operating Sys(more...) Inputs 4 x Digital inputs 2 x Temperature inputs 4 x Analog inputs 2 x Trigger inputs 1 x Knock Input (Shared with DI4) 1 x Onboard 4 Bar MAP sensor Outputs 4 x Injector drives 4 x Ignition drivers 6 x Auxiliary outputs^ +5V Sensor power supply ^unused ignition drives can be used as additional Aux outputs Communications 1x CAN bus 1x USB tuning connection Upgraded communications chip (four times faster than G4+) Physical: Dimensions: 95mm(L) x 130mm(W) x 45mm(H) (without loom) Weight: 220 grams Advanced features not found on the AtomX: Antilag, rolling antilag and launch control. Up to 2 fully variable closed loop VVT cams. Misc: 512MB of logging memory within data storage unit 20 general purpose tables Runs on PC Link software for G4X The Monsoo(more...) Engine Configurations _x000D_ 1-12 Cylinder Distributed _x000D_ 2-8 Cylinder Wasted Spark _x000D_ 1-4 Cylinder Direct Spark _x000D_ Odd Fire Engines _x000D_ 2-Stroke Engines _x000D_ Configurable Firing Order _x000D_ Configurable TDC Points (for odd fire) _x000D_ _x000D_ _x000D_ Fueling Adjustments _x000D_ Up to 440 Zone Fuel Table with configurable load and RPM centers. Configurable X and Y Axis Parameters _x000D_ Multiple Fuel Tables _x000D_ Up to 6D Fuel Mapping (3D Fuel Table + 3x3D Overlay trim tables) _x000D_ Injection Rate Control for Group Injection Modes _x000D_ Master Enrichment for Traditional Fuel tuning _x000D_ Pre-Crank Prime _x000D_ First Crank Prime _x000D_ Crank Enrichment _x000D_ Post Start Enrichment _x000D_ Warm Up Enrichment _x000D_ Acceleration Enrichment _x000D_ IAT Fuel Correction _x000D_ Injector Deadtime Compensation _x000D_ Injector Short Pulse Width Compensation _x000D_ Injector Timing Control with Beginning / End Injection Definable _x000D_ AFR Table Correction _x000D_ Dual Closed Loop Lambda _x000D_ Individual Cylinder Fuel Trims _x000D_ Overrun Fuel Cut _x000D_ Idle Load Trims _x000D_ Fuel Temperature Correction _x000D_ _x000D_ _x000D_ Ignition Adjustments _x000D_ Up (more...)
