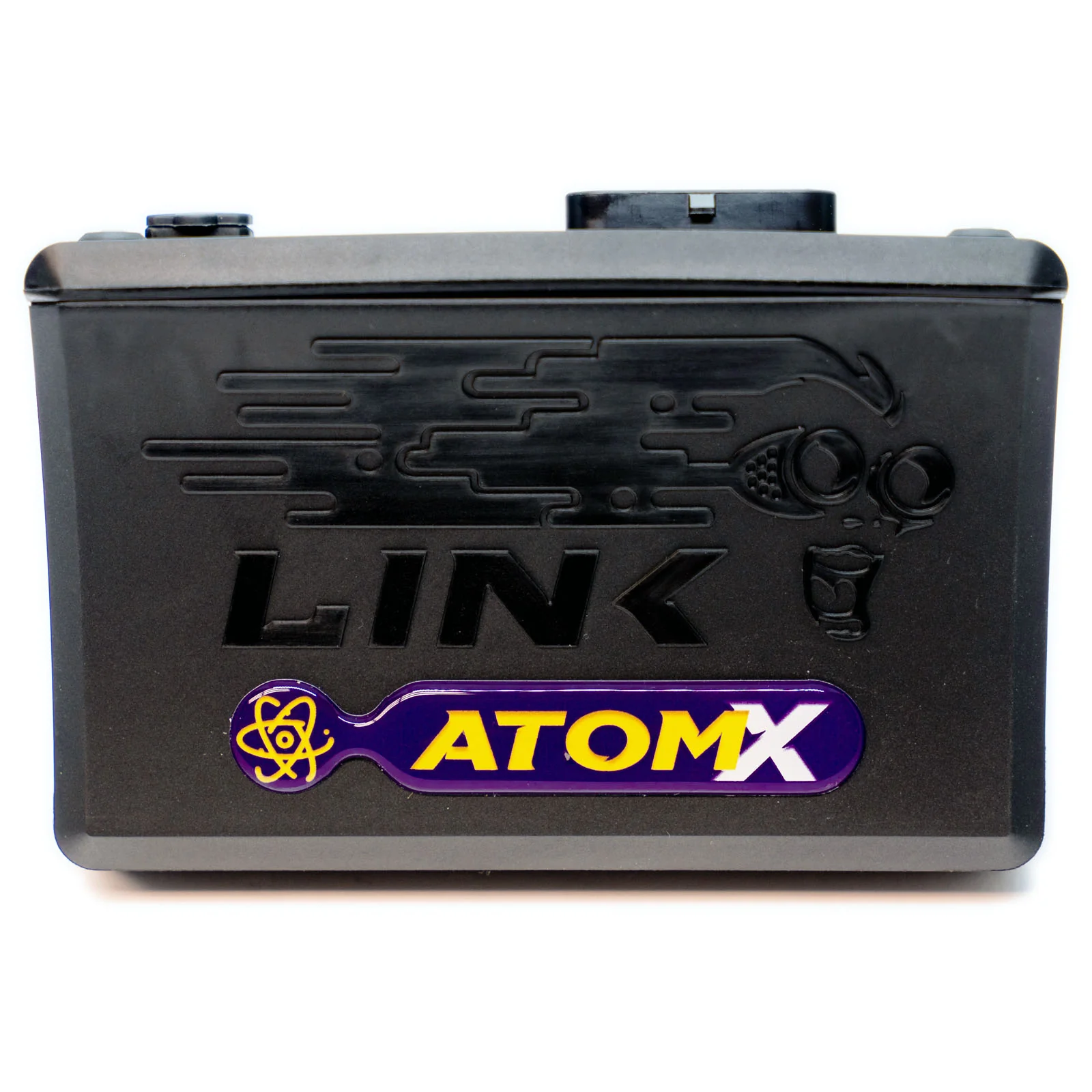

_x000D_ AtomX _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ Small, but mighty! _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ The AtomX can control up to 2 rotors or 4 cylinders with sequential injection and direct spark. Or, it can be used for up to eight cylinders using batch fire. Now featuring Knock Control. _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ This makes it ideal for naturally aspirated engines that just need a re-tune and don't need all the extra sensors and features that come with our higher level ECUs. _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ The Link G4X AtomX ECU may be our entry-level ECU but don't let its size fool you. The AtomX has expanded data logging and uses the same microcontroller as the entire G4X range! The processing unit is more responsive and has higher bandwidth than its G4+ Atom II predecessor. _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ G4X features 512 megabytes of logging at 32bit using up to 250 channels, each limited to up to 1kHz per channel (by the Operating System), with a maximum of 100 kSamples/sec. _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ G4X features 8 x faster communications speed than G4+ ECUs, allowing you to download logs 8 x faster and pushes all the logging quickly up to a new and improved PCLink – available for d(more...) _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ Communications: _x000D_ _x000D_ _x000D_ 1x CAN bus _x000D_ _x000D_ _x000D_ 1x USB tuning connection _x000D_ _x000D_ _x000D_ 1 x thirty four pin, waterproof connector _x000D_ _x000D_ _x000D_ Upgraded Communications Chip _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ Misc: _x000D_ _x000D_ _x000D_ Comes loaded with all of Link ECU's standard features. _x000D_ _x000D_ _x000D_ 512MB of logging memory within data storage unit _x000D_ _x000D_ _x000D_ 20 general purpose tables _x000D_ _x000D_ _x000D_ Runs on PC Link software for G4X _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ Physical: _x000D_ _x000D_ _x000D_ Dimensions: 90mmL x 130mmW x 45mmH (without loom) _x000D_ _x000D_ _x000D_ Weight: 180 grams _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ What's in the box: _x000D_ _x000D_ _x000D_ The AtomX ECU is supplied with a USB tuning cable, mounting bracket and four Link ECU stickers. _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ Download AtomX Quickstart Guide Engine Configurations _x000D_ 1-12 Cylinder Distributed _x000D_ 2-8 Cylinder Wasted Spark _x000D_ 1-4 Cylinder Direct Spark _x000D_ Odd Fire Engines _x000D_ 2-Stroke Engines _x000D_ Configurable Firing Order _x000D_ Configurable TDC Points (for odd fire) _x000D_ _x000D_ _x000D_ Fueling Adjustments _x000D_ Up to 440 Zone Fuel Table with configurable load and RPM centers. Configurable X and Y Axis Parameters _x000D_ Multiple Fuel Tables _x000D_ Up to 6D Fuel Mapping (3D Fuel Table + #x3D Overlay trim tables _x000D_ Injection Rate Control for Group Injection Modes _x000D_ Master Enrichment for Traditional Fuel tuning _x000D_ Pre-Crank Prime _x000D_ First Crank Prime _x000D_ Crank Enrichment _x000D_ Post Start Enrichment _x000D_ Warm Up Enrichment _x000D_ Acceleration Enrichment _x000D_ IAT Fuel Correction _x000D_ Injector Deadtime Compensation _x000D_ Injector Short Pulse Width Compensation _x000D_ Injector Timing Control with Beginning / End Injection Definable _x000D_ AFR Table Correction _x000D_ Closed Loop Lambda _x000D_ Individual Cylinder Fuel Trims _x000D_ Overrun Fuel Cut _x000D_ Idle Load Trims _x000D_ Fuel Temperature Correction _x000D_ _x000D_ _x000D_ Ignition Adjustments _x000D_ Up to 440(more...)
